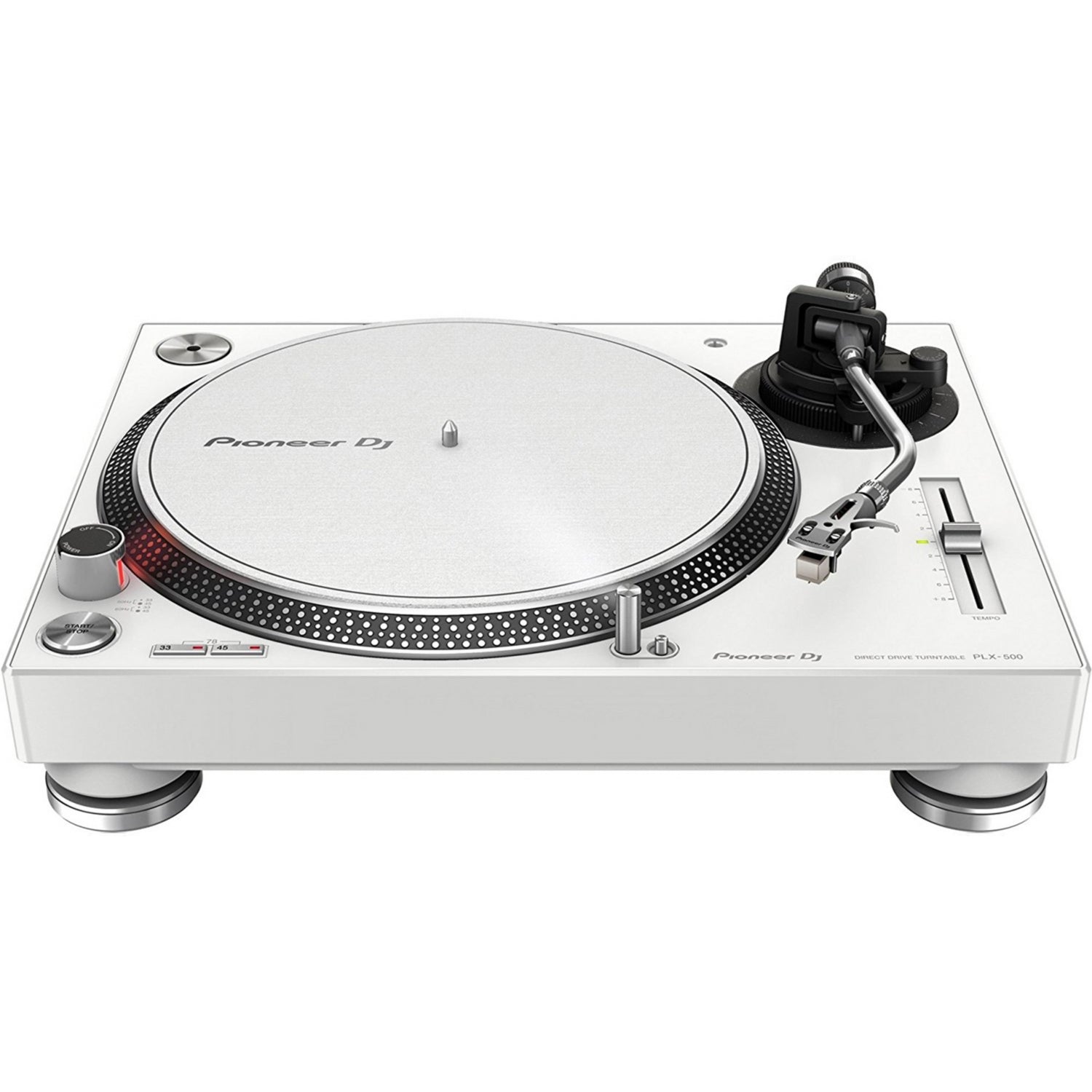

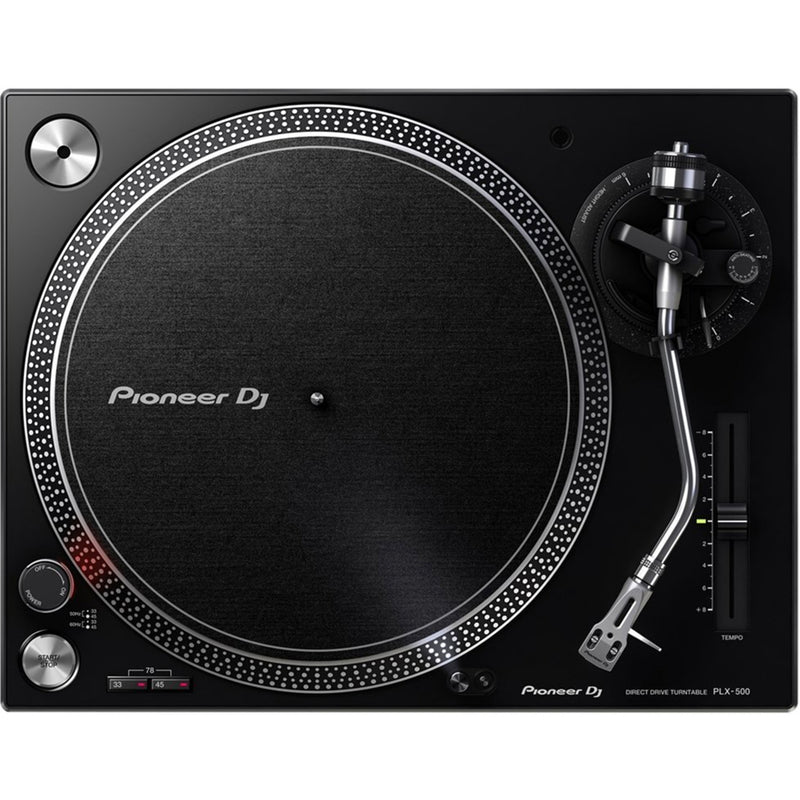

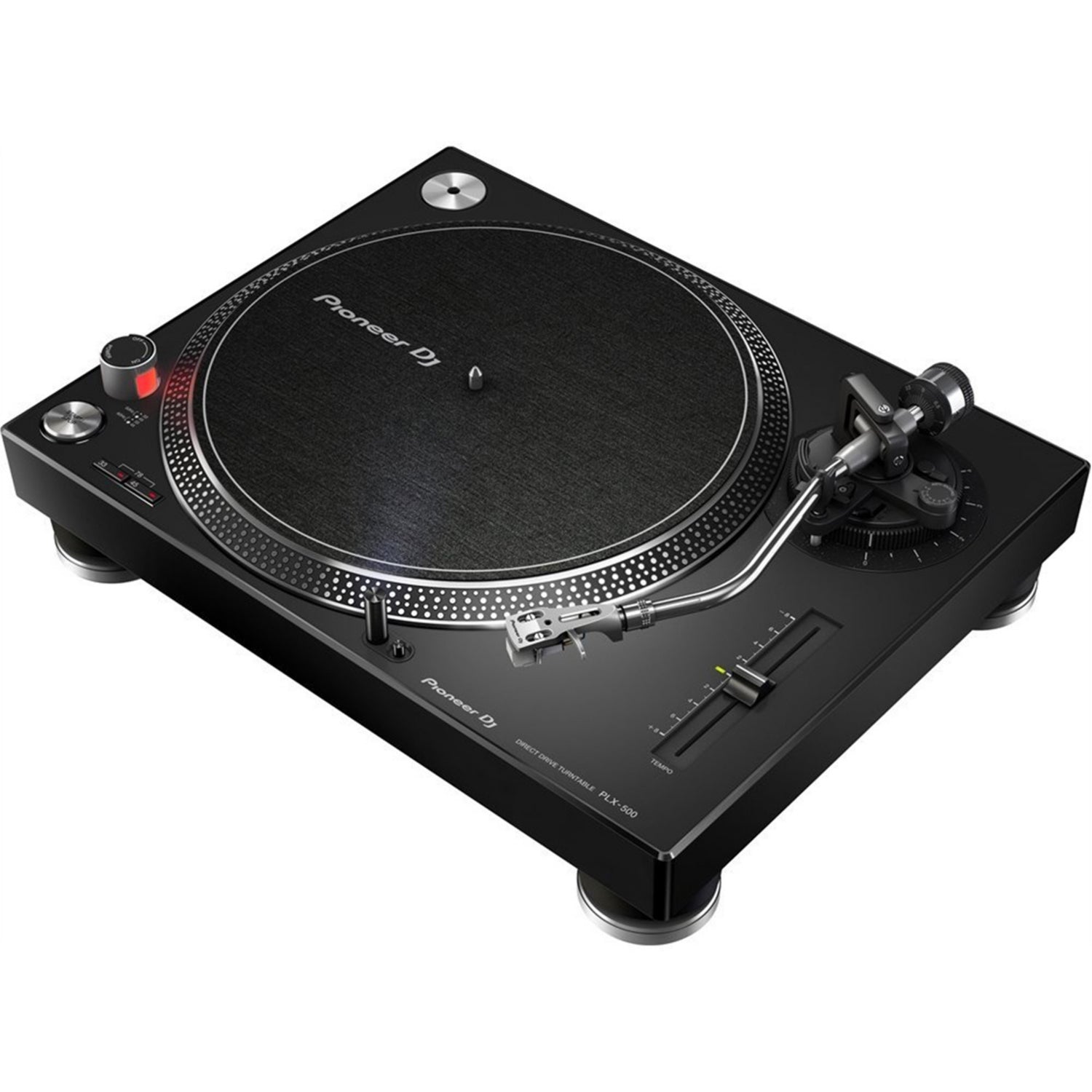

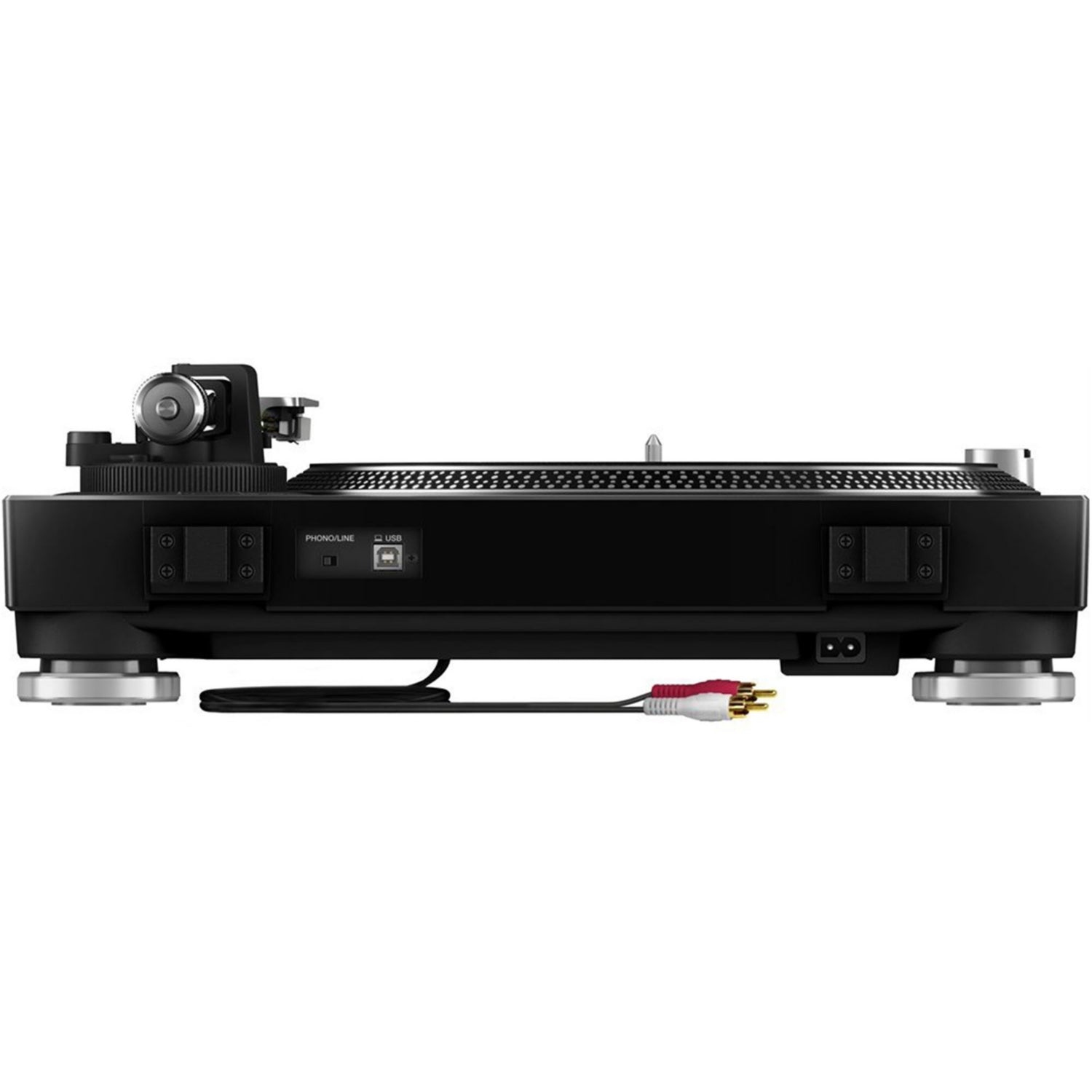

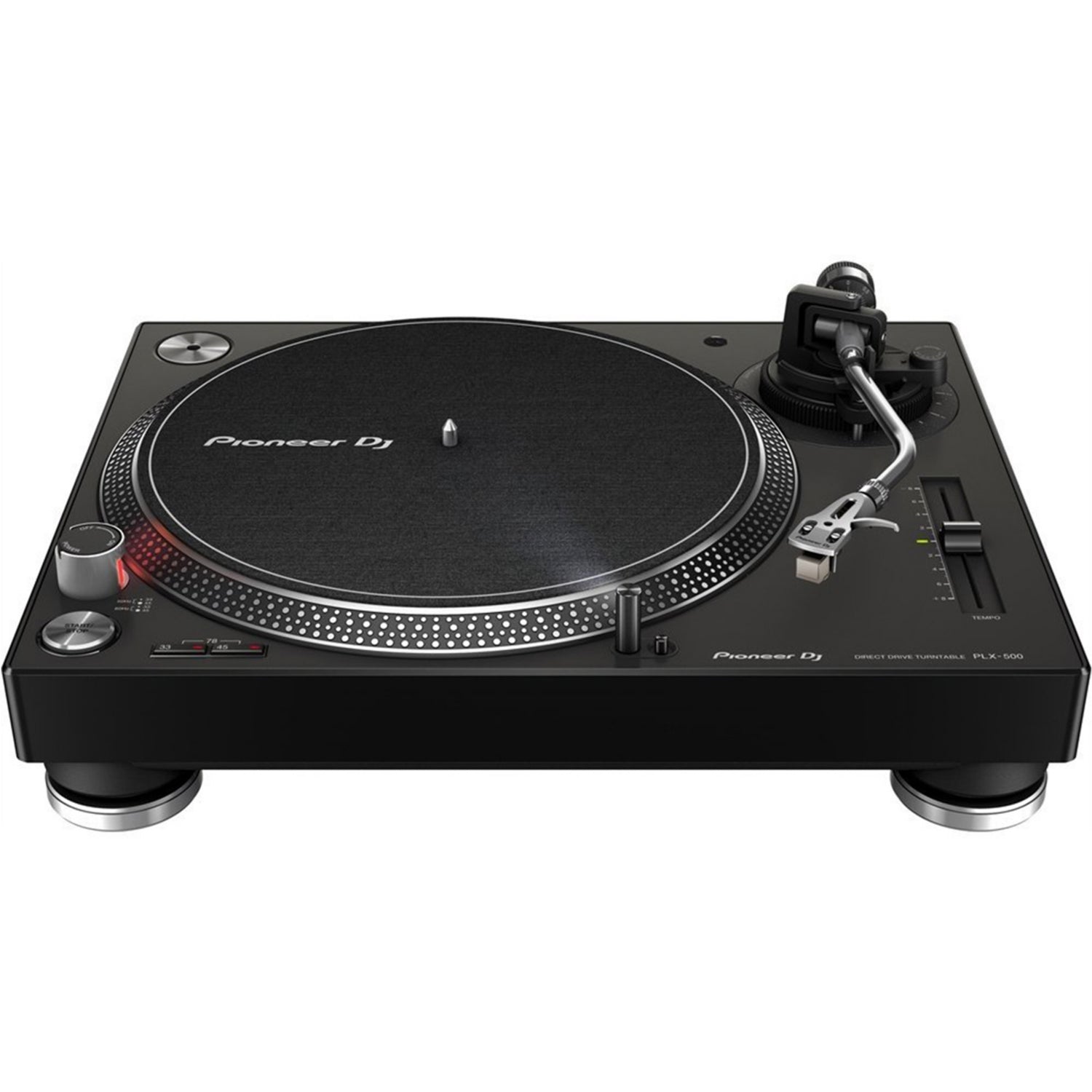

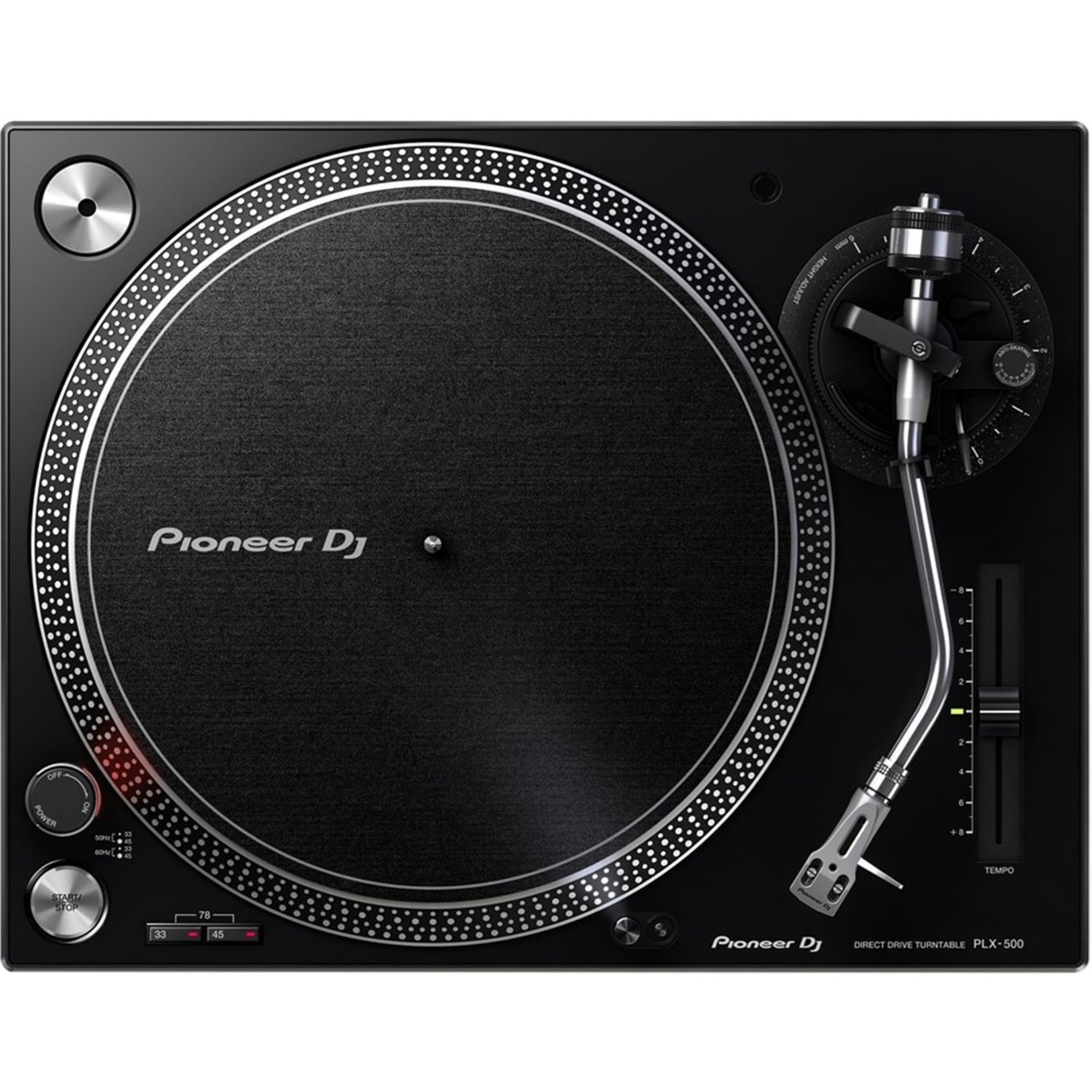

Enjoy high-quality vinyl sound with the Pioneer DJ PLX-500 turntable. Its direct-drive motor and short audio routing deliver clear analogue reproduction for home listening or DJ performance.
Excellent sound design Just like the PLX-1000, the PLX-500 is built to produce a high-quality vinyl sound. The shortest possible audio routing from the stylus to the outputs reduces distortion, while the phone/line output switch lets you connect directly to your sound system or to powered speakers with no need for an external amplifier.
Easy digital recording Record your vinyl collection to high-quality digital files by simply connecting the turntable to your PC or Mac via the USB out.
Smooth DJ play Use the PLX-500 to mix and scratch your vinyl records or combine the turntable with rekordbox dvs, a compatible DJ mixer and the RB-VS1-K Control Vinyl to play and perform with your digital files.
Cover art display Put your record covers on display while listening to your vinyl thanks to the sleeve stand inside the dust cover.
Start from scratch This turntable comes with all the accessories you need to get started: a dust cover with jacket stand, a slipmat and a silver edition PC-HS01-S headshell (cartridge and stylus included).
| Specification | Value |
|---|---|
| Drive Method | Servo-type direct drive |
| Platter | Aluminium, die-casting diameter: 332 mm |
| Motor | 3-phase, brushless DC motor |
| Braking System | Electronic brake |
| Rotation Speed | 33, 45, 78 rpm |
| Rotation Adjustment Range | ±8% |
| Wow and Flutter | < 0.15% WRMS |
| Signal-to-Noise Ratio | 50 dB |
| Starting Torque | > 1.6 kgf·cm |
| Start Time | Within 1 sec (at 33 rpm) |
| Tone Arm | Universal type S-shape tone arm, Gimbal-supported type bearing structure, Static balance type |
| Overhang | 16 mm |
| Effective Length | 230.5 mm |
| Tracking Error | Within 3° |
| Height Adjustment Range | 6 mm |
| Stylus Pressure Variable Range | 0-4 g (1 scale 0.1 g) |
| Proper Cartridge Weight | < 9.5 g |
| Cartridge Type | VM |
| Interface | 1 x USB B port, 1 x 1 PHONO/LINE (RCA) |
| Dimensions | 450 x 159 x 368 mm |
| Weight | 10.7 kg |
| Boxed Content |
|
