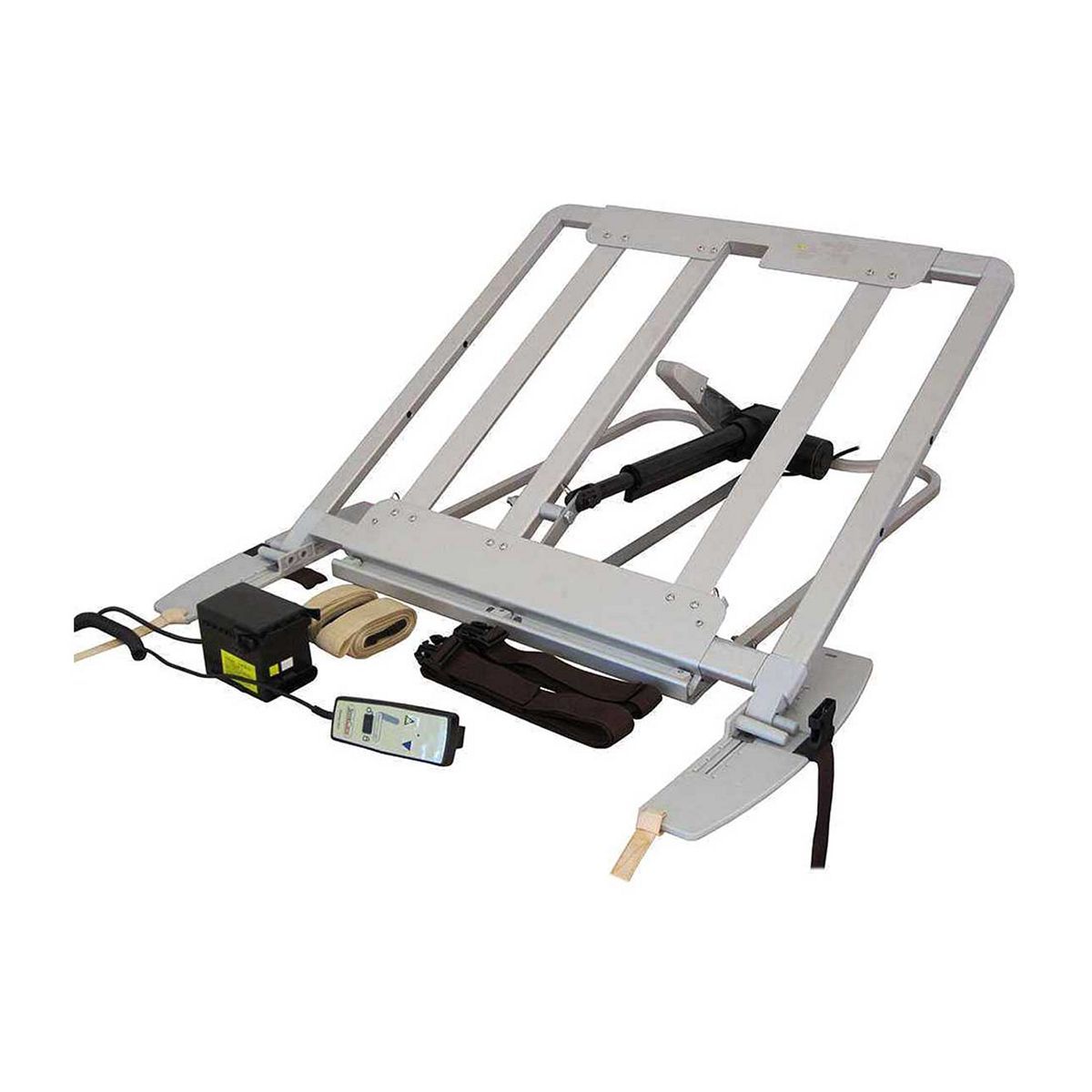

The DreamMaster Light Mattress Elevator has been designed to provide assistance and comfort to those who struggle with sitting up or lying down comfortably in bed.
It has been created to promote comfort and better user independence with its smooth and quiet operation, which offers support to the user by reducing the strain experienced when sitting up in bed reading, eating, resting or sleeping. With an adjustable elevation that ranges from just 5 degrees up to a maximum elevation angle of 85 degrees, this high-quality electrically operated mattress fits all bed sizes from single beds all the way up to king-size beds.
Furthermore, it has been tried and tested by NRS Healthcare Occupational Therapists to ensure that the NRS DreamMaster Light is functional, easy to use and safe.
Assembly For assembling the DreamMaster Light Mattress Elevator, refer to the instruction manual/booklet for quick and easy assembly for yourself or the person that you care for.
Suitable for adults
Remove the mattress from the bed base. Place the DreamMaster Light frame centrally on the base, with the top of the frame 5cm (2”) from the head of the bed. The cable for the motor should lead up the bed, between the upper and lower frame sections.
The width adjusting “trombone” needs to be extended to suit the width of the bed. Place the strap bracket with the curved side at the edge of the bed. Disengage the trombone locking pin by pulling the ring towards the head of the bed and rotating a quarter of a turn. Now extend the trombone until the inside edge is in line with the upstand of the strap bracket.
Engage the trombone locking pin; this may require minor re-alignment of the trombone. Next connect the strap bracket to the elevator frame with the thin cream strap leading down the bed. The short brown strap must be fed through the T-slot in the bracket, as illustrated.
Repeat steps 2 and 3 at the other side of the bed. If you are to use the DreamMaster Light with the Knee-Break, refer to the Knee-Break fitting instructions before you proceed to point 4.
Connect one of the 2.5m brown straps to the lower female buckle from the strap bracket at one side of the bed. Pass the long strap under the bed and connect at the other side. Tighten the strap to secure the elevator to the bed base, then tidy away any excess strap to avoid a trip hazard.
Ensure the thin cream straps are accessible from each side of the bed, then replace the mattress. Take the remaining 2.5m strap and connect each side to the available female buckle and tighten. Softer mattresses will need less tension in the strap than thicker, firmer mattresses. Tidy away excess strap to avoid a trip hazard.
There are two 3.5m cream straps. Thread one strap through the loop in the narrow tail strap at one side of the bed, then repeat for the other side of the bed. Lead the female buckles under the corners of the bed and the male buckles over the corners of the mattress.
Take the diagonally opposite buckles, clip them together and tighten. Tuck excess strap between the bed base and mattress to tidy out of the way. The DreamMaster Light should now be securely installed on the bed.
Locate the transformer box and the hand control. Connect the yellow plug from the motor to the corresponding transformer socket and repeat for the hand control. Plug the three-pin plug in to the mains power supply and switch on.
Whilst the DreamMaster Light Mattress Elevator is accessible to anyone who requires it, the Maximum user weight is 254kg (40 stone). It should not be used to stand or climb on. To ensure stability make sure that the mattress is the appropriate size for the bed base.
