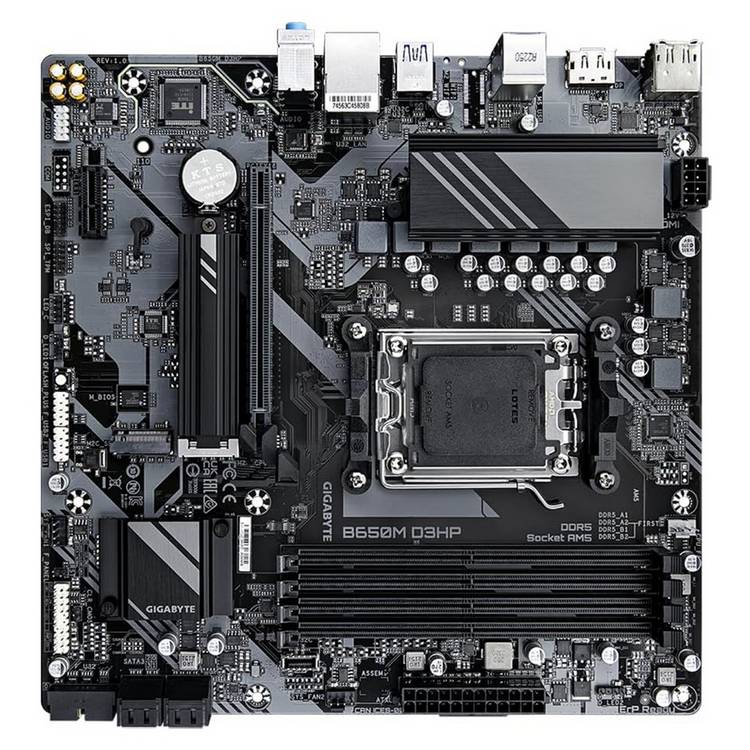

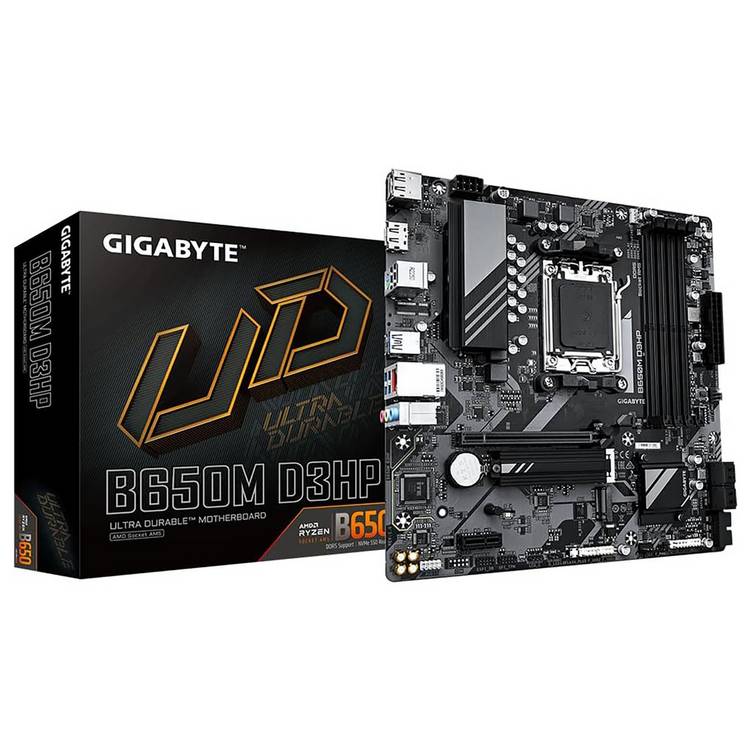

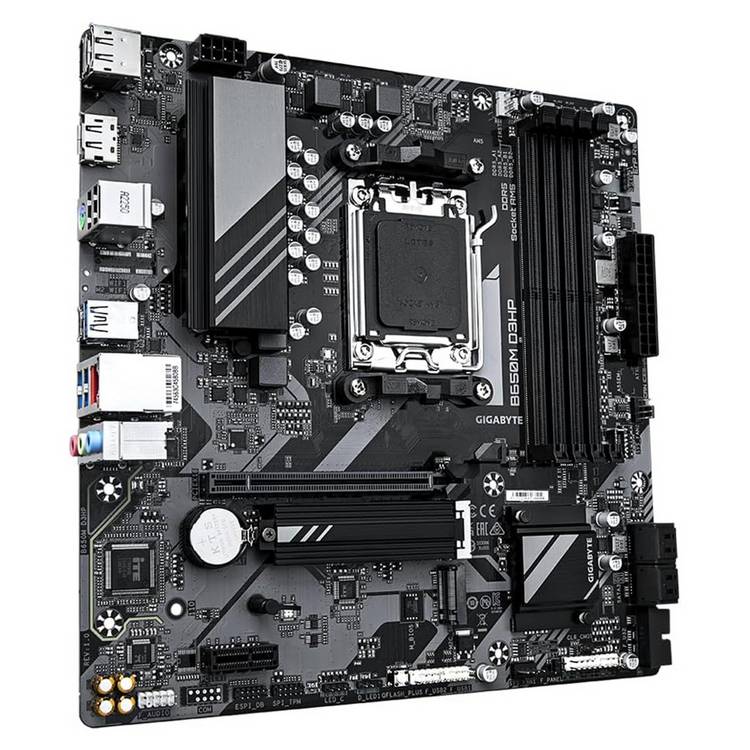

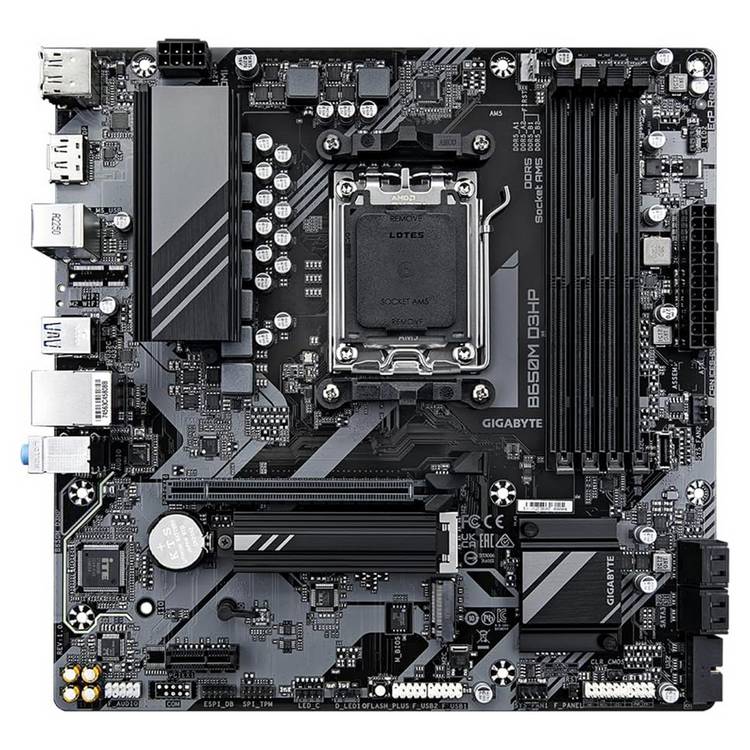

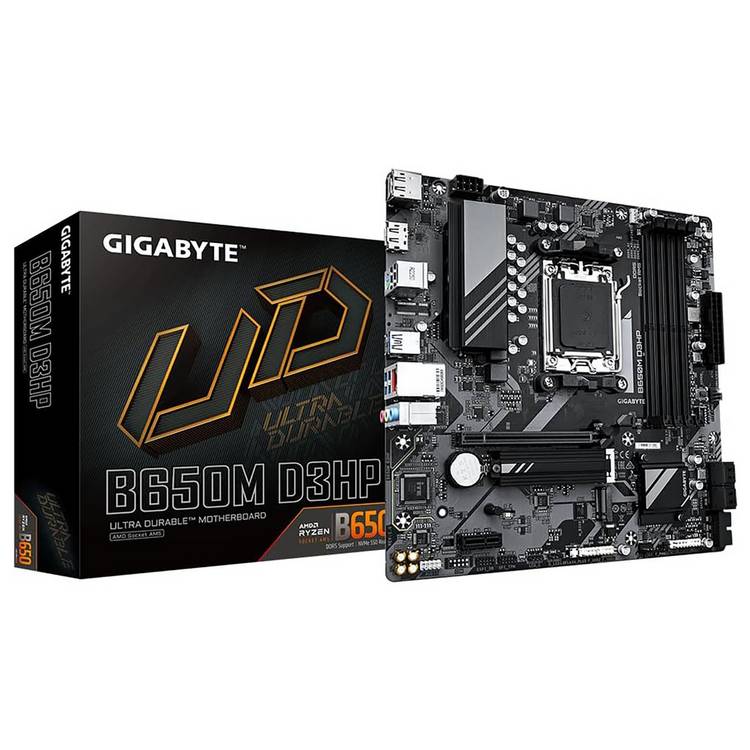

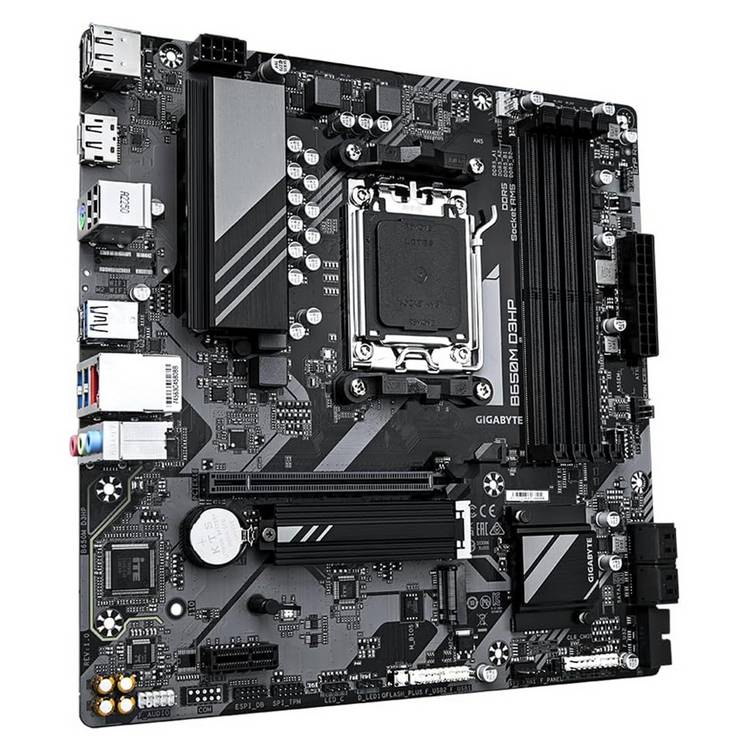

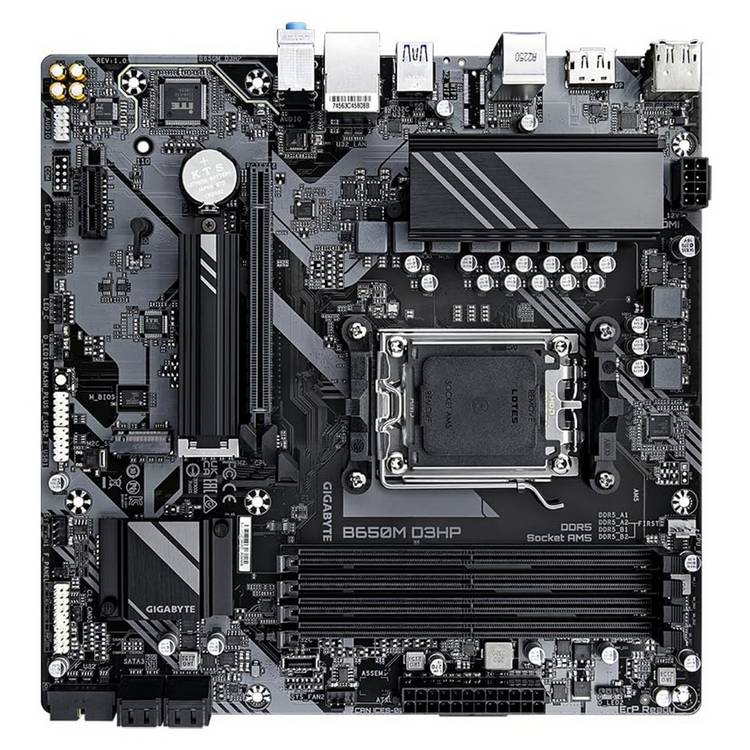

Gigabyte B650M D3HP AX Micro ATX Motherboard

The Gigabyte B650M D3HP AX in Micro ATX form factor is built for AMD's latest Ryzen processors, supporting the 7000, 8000 and 9000 series on Socket AM5 with a direct 8 phase digital VRM solution to keep power delivery stable under load. With 4 DDR5 memory slots supporting up to 192GB at speeds from 4800MHz through to 7600MHz with AMD EXPO and Intel XMP profiles, plus dual M.2 slots with heatsinks and 4 SATA 6Gb s connectors, you've got plenty of room to configure fast storage and enough memory for demanding workloads or gaming setups.

The rear I O includes Wi-Fi 6E 802.11ax, 2.5GbE LAN, 2 DisplayPort outputs, HDMI, USB Type-C, and 5 USB 2.0 ports, supporting wired and wireless networks plus multiple display options with integrated graphics. The EZ-Latch PCIe x16 slot enables quick GPU installation, while Smart Fan 6 with temperature sensors and hybrid fan headers (including pump support and FAN STOP) offers flexible cooling. Q-Flash Plus updates BIOS without CPU, memory or GPU installed. Rear buttons for power, reset, Q-Flash Plus, and Clear CMOS simplify setup. It measures 244mm by 305mm and includes a 3-year warranty, ideal for compact AM5 builds.

General features:

• AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors.
• Unparalleled Performance: Direct 8+2+2 Phases Digital VRM Solution.
• Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
• Micro ATX form factor.
• AMD B650.
• Compatible with AMD processor.
• Memory slots: 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture.
• Memory standard: DDR5.
• Expansion slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode.
• Storage slots: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors.
• Supports Microsoft Windows 10 or later.
• Voltage sensor.
• Power button.
• Reset button.
• Q-flash plus button.
• Clear CMOS button.
• Cooling: Pump fan, Fan cooling, Fan speed sensor, Thermal sensor, Water cooling flow rate sensor, Fan fail warning sensor, Heatsink, VRM heatsinks, M.2 heatsinks.
• Connectivity: 5 USB 2.0 ports, 1 USB type C ports, 1 Ethernet port, 1 HDMI ports, 2 Display port, Headphones jack.
• BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
• General information: Weight 1940g, W244, D305 mm, Manufacturer's 3 year guarantee, DDR5 memory channel, EAN: 4719331859510.
