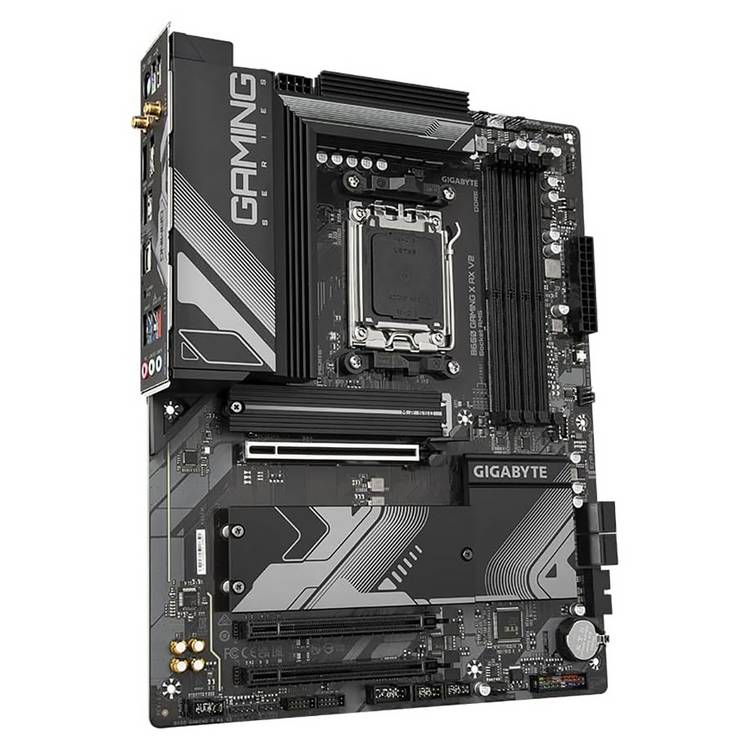

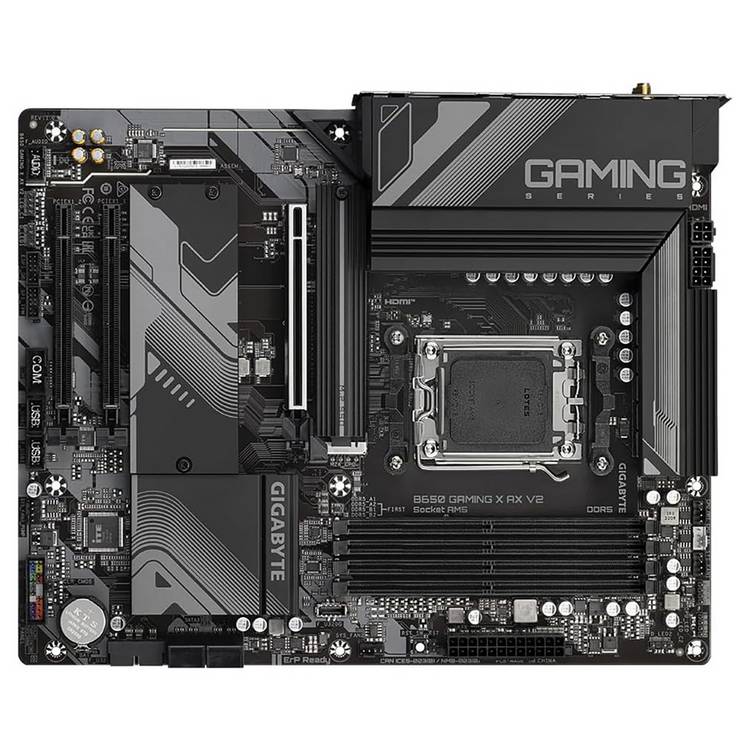

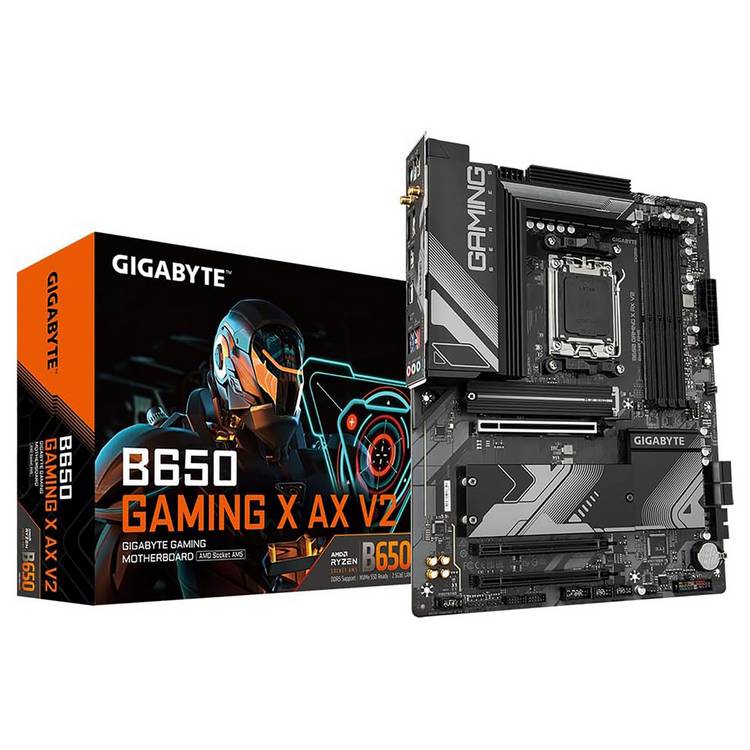

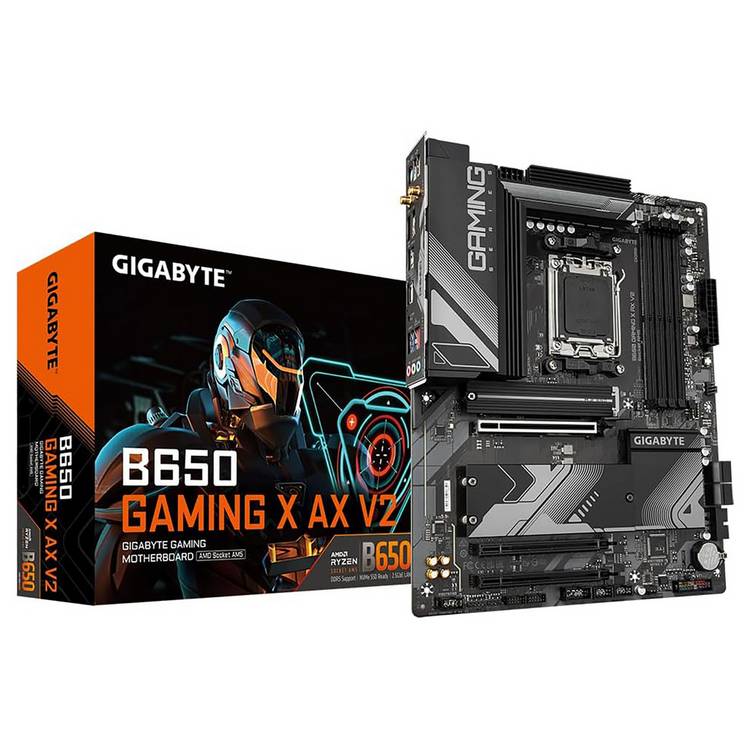

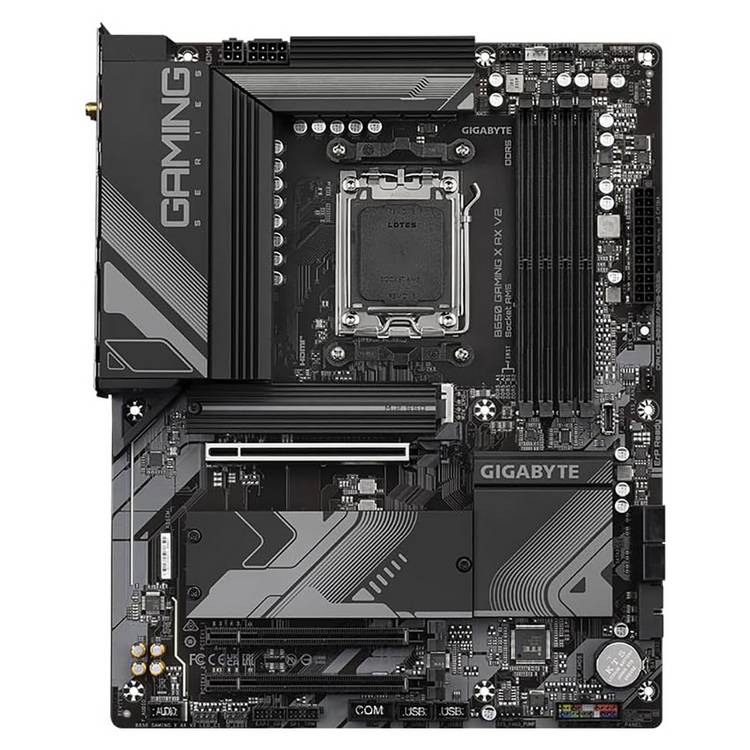

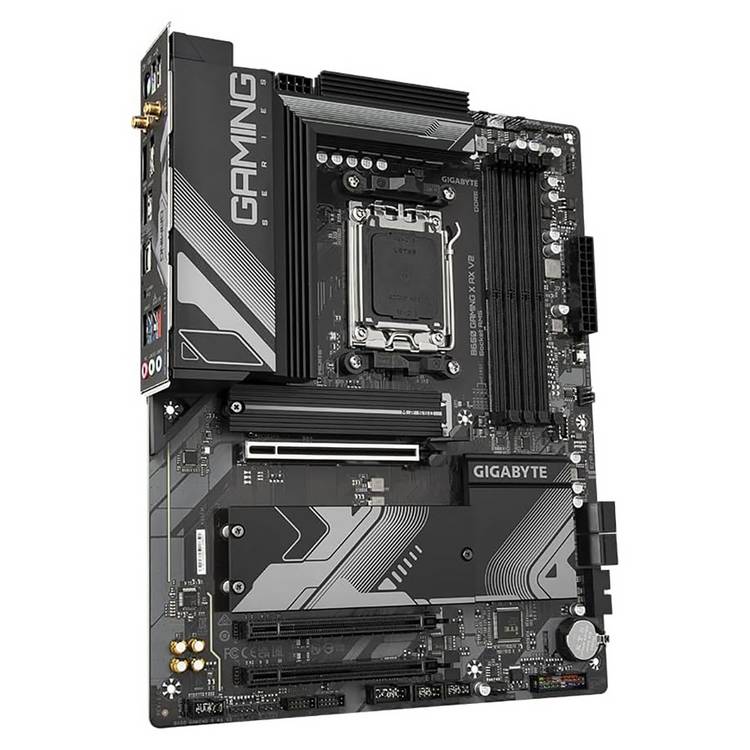

Gigabyte B650 Gaming X AX V2 AMD ATX Motherboard

The Gigabyte B650 Gaming X AX V2 is built for AMD Ryzen 7000 and 8000 Series processors on the AM5 socket, giving you a solid foundation for a modern gaming or productivity build. This ATX motherboard centres around a direct 8 phase digital VRM solution that delivers stable power to your processor, whilst the B650 chipset unlocks PCIe connectivity and dual-channel DDR5 support for speeds up to 7800MHz across 4 DIMM slots with a maximum capacity of 192GB, so you've got plenty of room to grow.

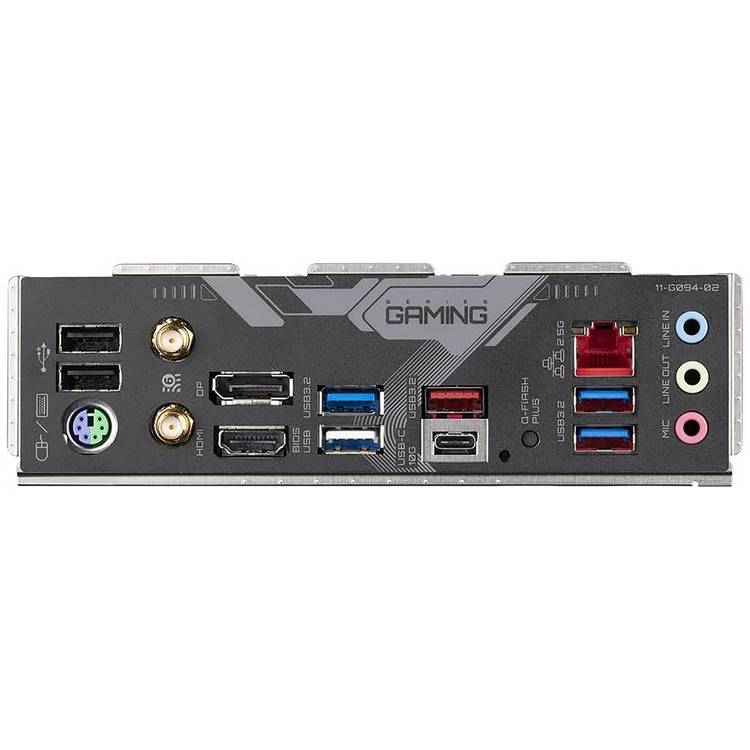

Inside, the Gigabyte B650 Gaming X AX V2 offers one PCIe x16 slot integrated into the CPU for your graphics card, plus two PCIe 3.0 x1 slots for expansion. Storage includes 2 CPU-integrated M.2 connectors (Socket 3, M key, sizes 25110 to 2280), each with a heatsink to cool NVMe SSDs. Rear IO features HDMI, DisplayPort, Ethernet, USB Type-C, 3 USB 2.0 ports, a headphone jack, and a Q-Flash Plus button for BIOS updates without a processor. Measuring 244mm by 305mm, it includes VRM heatsinks and fan headers supporting pump and water cooling sensors, balancing features and flexibility for serious builds.

General features:

• AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors.
• Unparalleled Performance: Direct 8+2+2 Phases Digital VRM Solution.
• Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
• ATX form factor.
• AMD B650.
• Compatible with AMD processor.
• Memory slots: 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory.
• Memory standard: DDR5.
• Expansion slots: PCI Express x16 slot (PCIEX16), integrated in the CPU, 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2).
• Storage slots: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs.
• Supports Microsoft Windows 10 or later.
• Voltage sensor.
• Power button.
• Reset button.
• Q-flash plus button.

Cooling:

• Pump fan.
• Fan cooling.
• Fan speed sensor.
• Thermal sensor.
• Water cooling flow rate sensor.
• Fan fail warning sensor.
• Heatsink.
• VRM heatsinks.
• M.2 heatsinks.

Connectivity:

• 3 USB 2.0 ports.
• 1 USB type C ports.
• 1 Ethernet port.
• 1 HDMI ports.
• 1 Display port.
• Headphones jack.

BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

General information:

• Weight 1940g.
• W244, D305 mm.
• Manufacturer's 3 year guarantee.
• DDR5 memory channel.
• Supports 7800MHz memory.
• EAN: 4719331860073.
