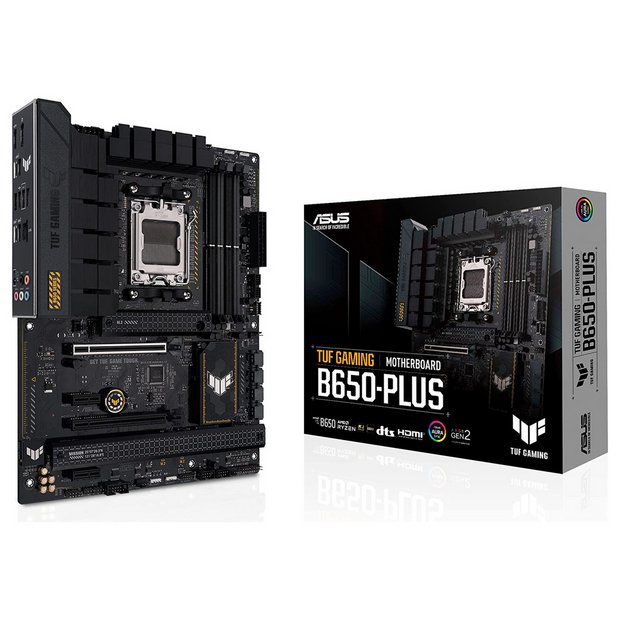

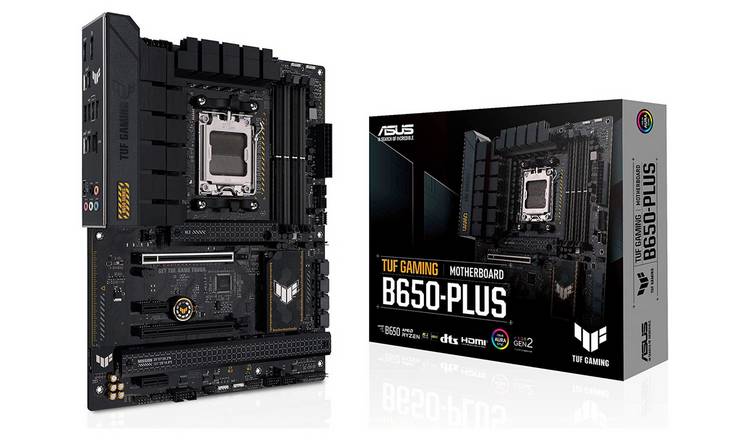

ASUS TUF Gaming B650-Plus WiFi AMD Motherboard

ASUS TUF Gaming B650-PLUS WiFi takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF Gaming motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail.

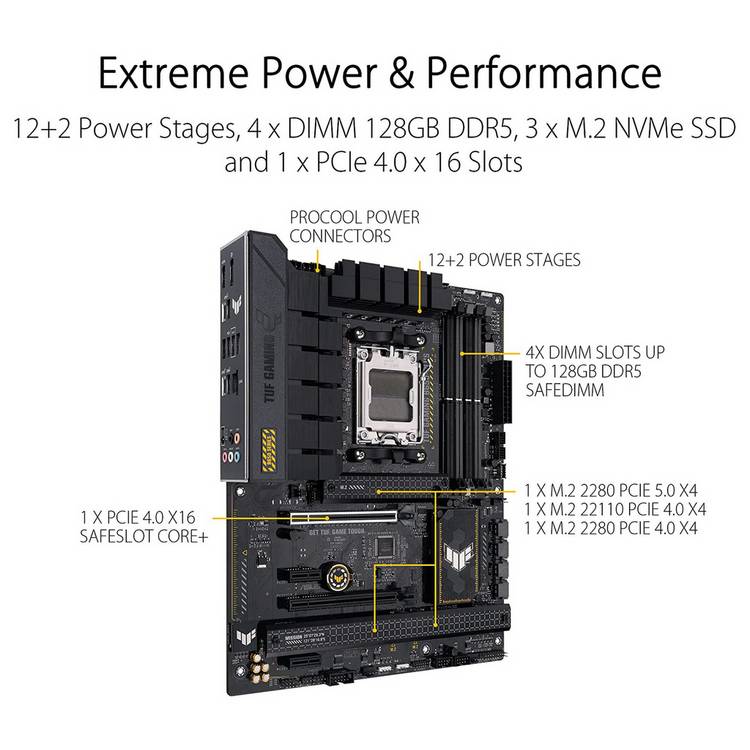

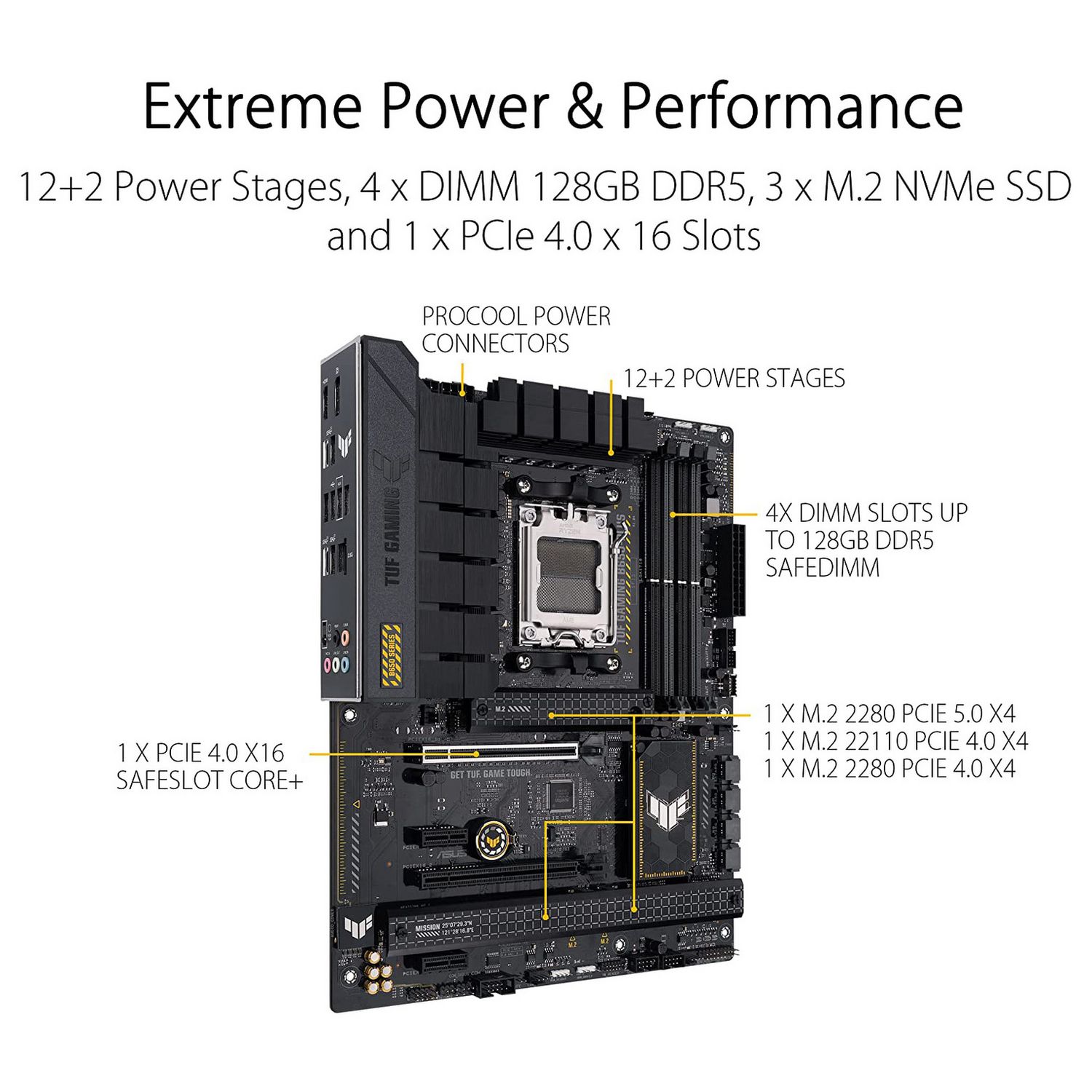

Teamed Power Stages: 12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.

General features:

• ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O
• ASUS Q-Design - M.2 Q-Latch - Q-DIMM
• ATX form factor
• AMD B650
• Compatible with AMD processor
• Memory slots: 4 x DIMM, Max. 128GB, DDR5
• Memory standard: DDR5 (Dual Channel)
• Expansion slots: AMD Ryzen 7000 Series Desktop Processors x 1 x PCIe 4.0/3.0 x16 slot(s); AMD B650 Chipset: 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 2 x PCIe 4.0/3.0 x1 slots
• Storage slots: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Clear CMOS button

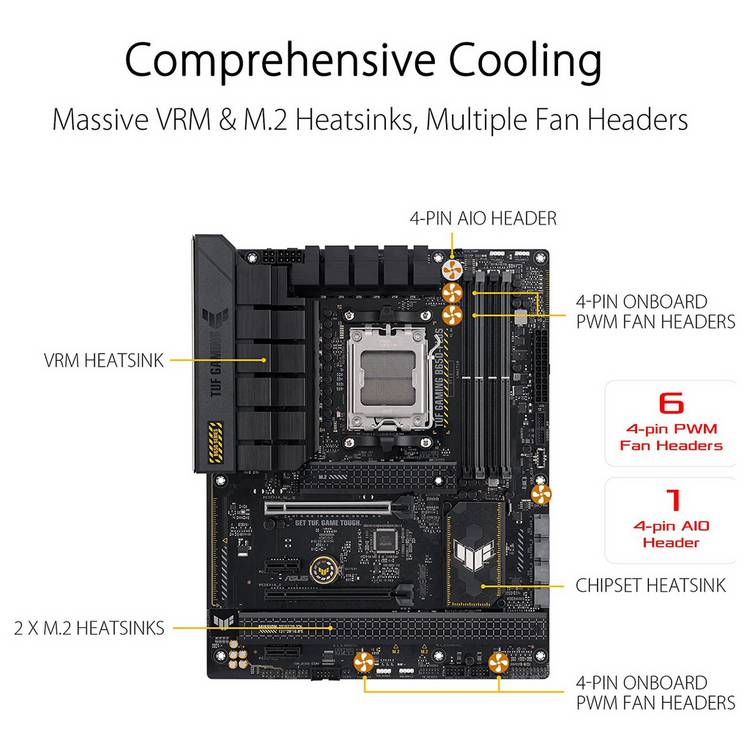

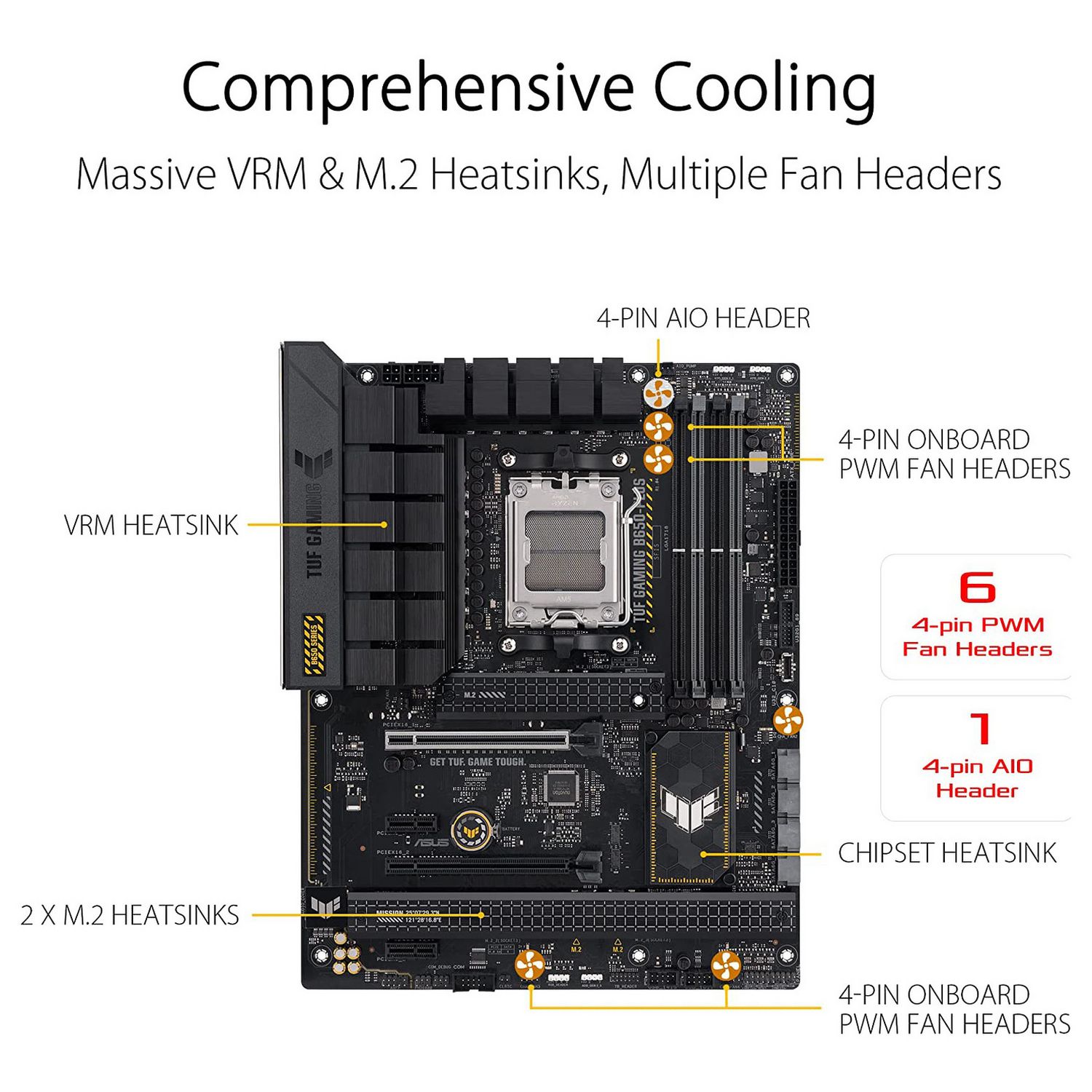

Cooling:

• VRM heatsinks
• M.2 heatsinks

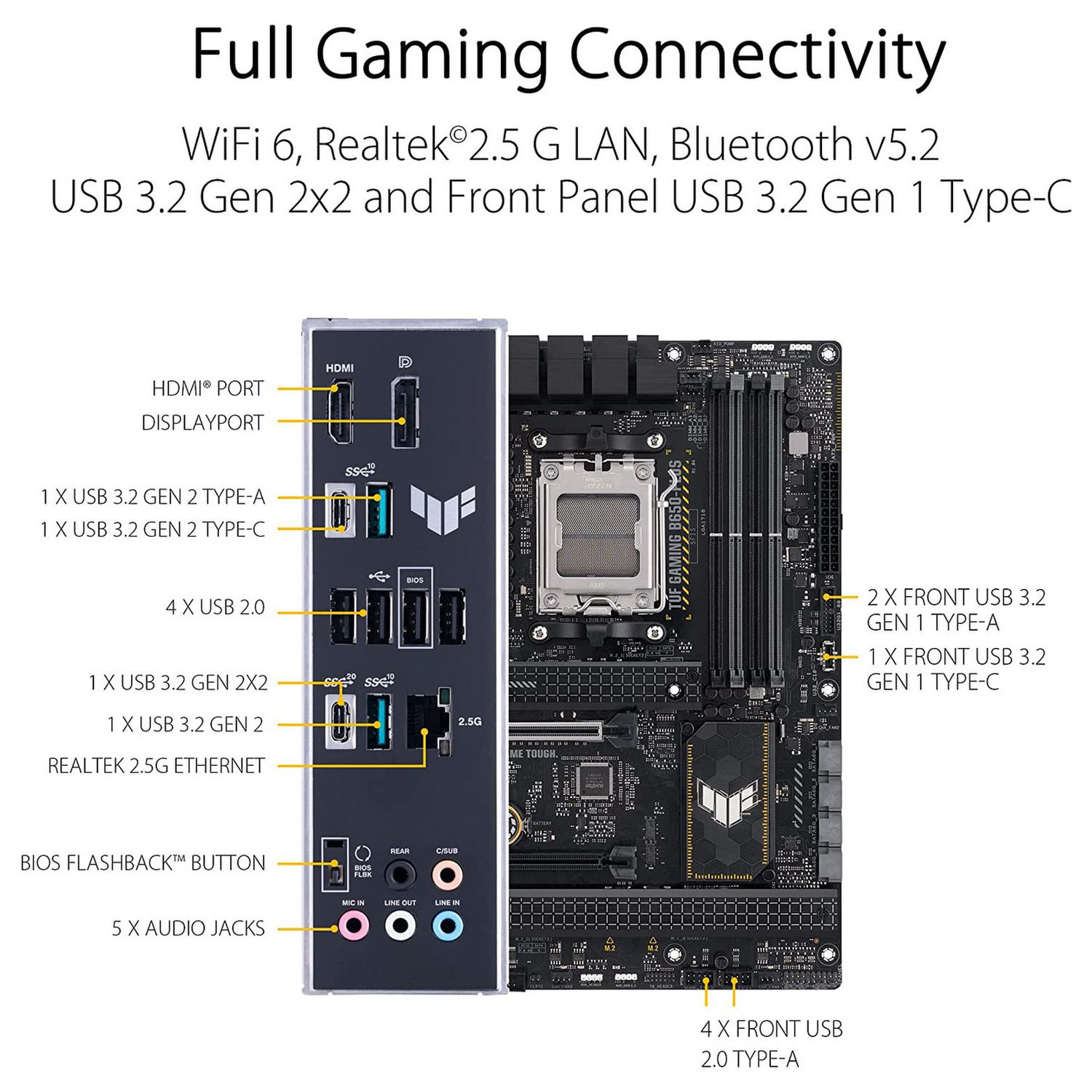

Connectivity:

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

General information:

• Weight 1740g
• Size H60, W244, D305 mm
