The ASUS ROG Strix B650-A Gaming Wi-Fi Motherboard supports AMD Ryzen 7000 processors with a robust 12+2 power solution. Its DDR5 memory support up to 8000MHz ensures fast multitasking for gaming and content creation. Use the PCIe 5.0 M.2 slot for ultra-fast SSDs.

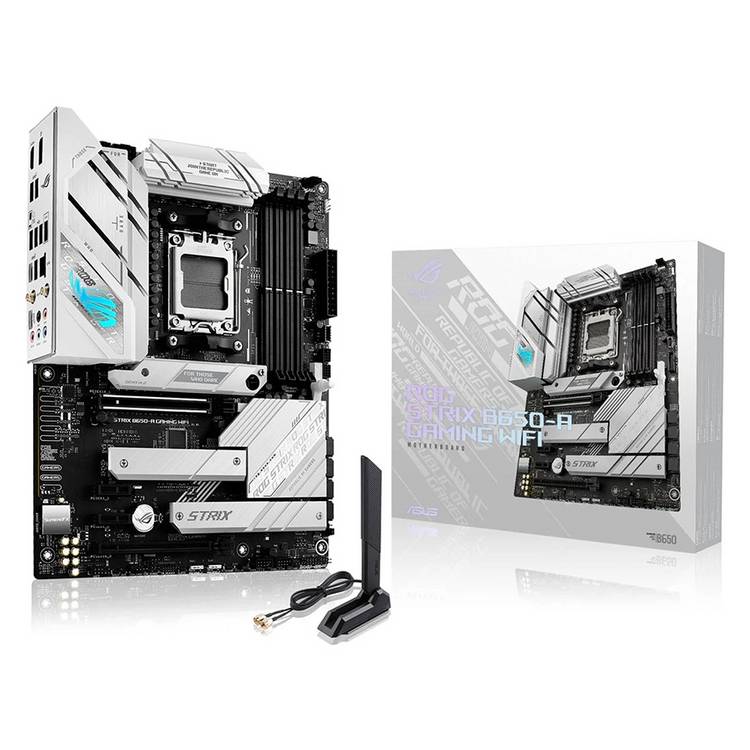

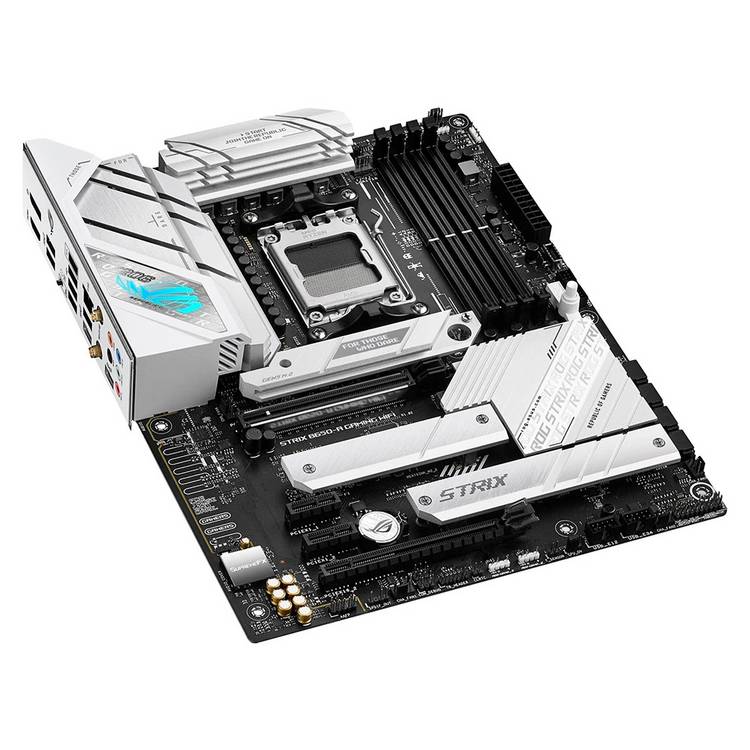

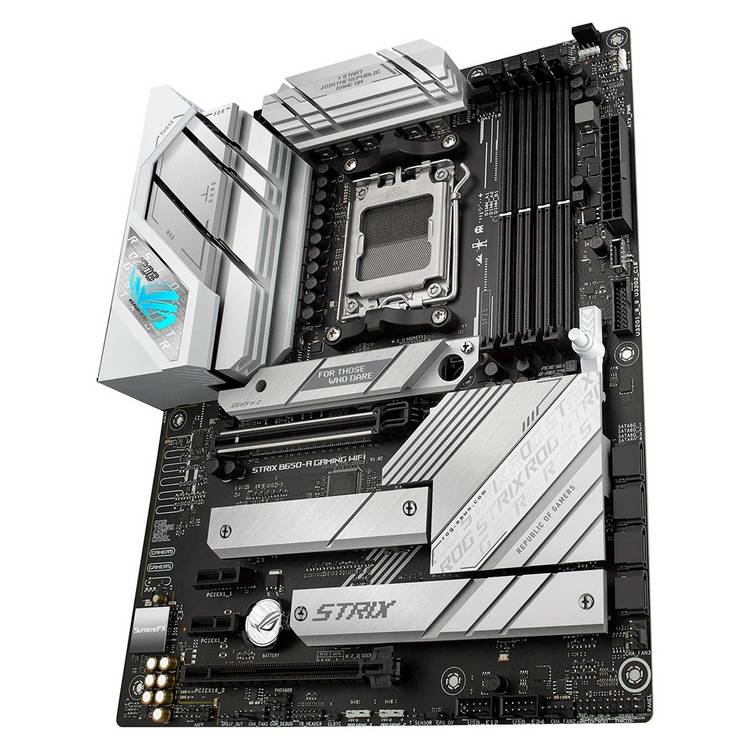

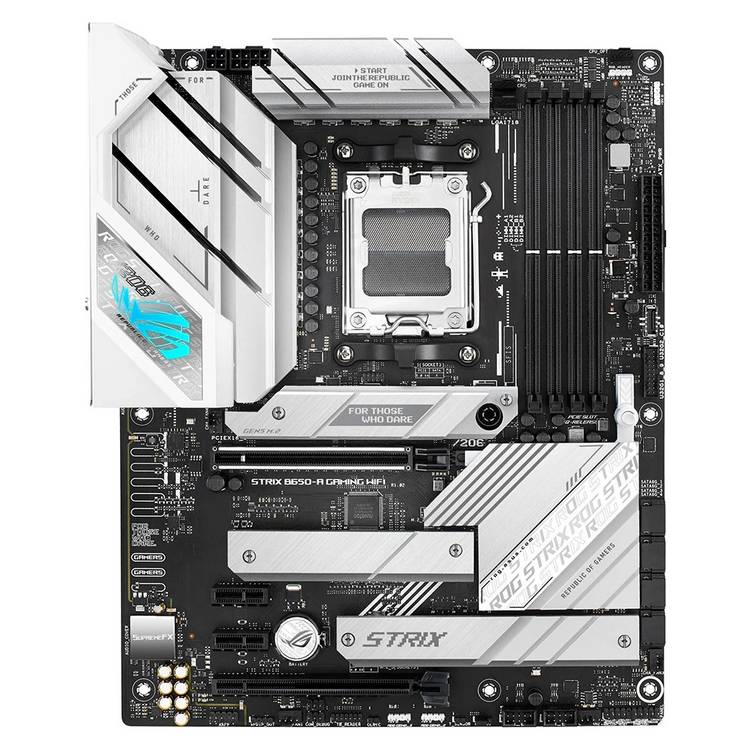

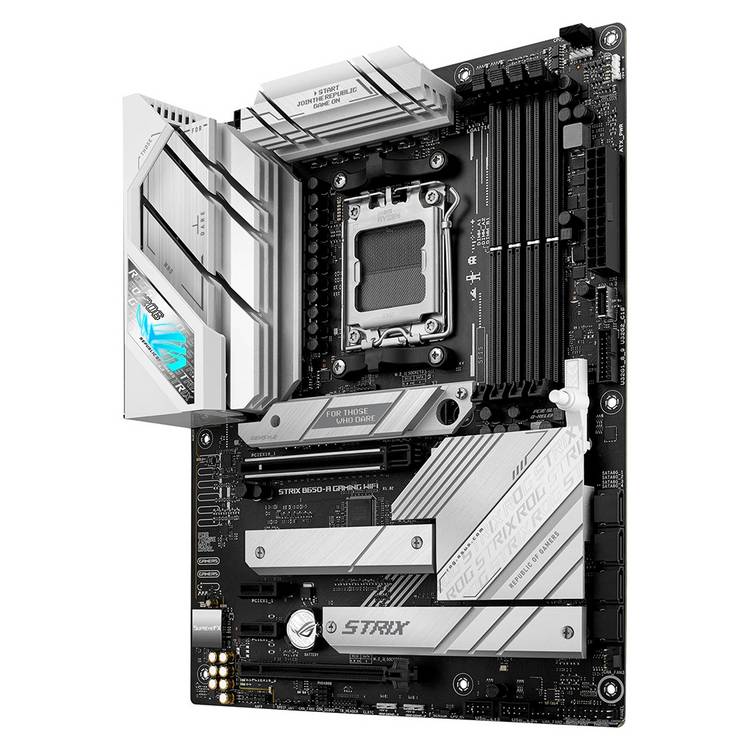

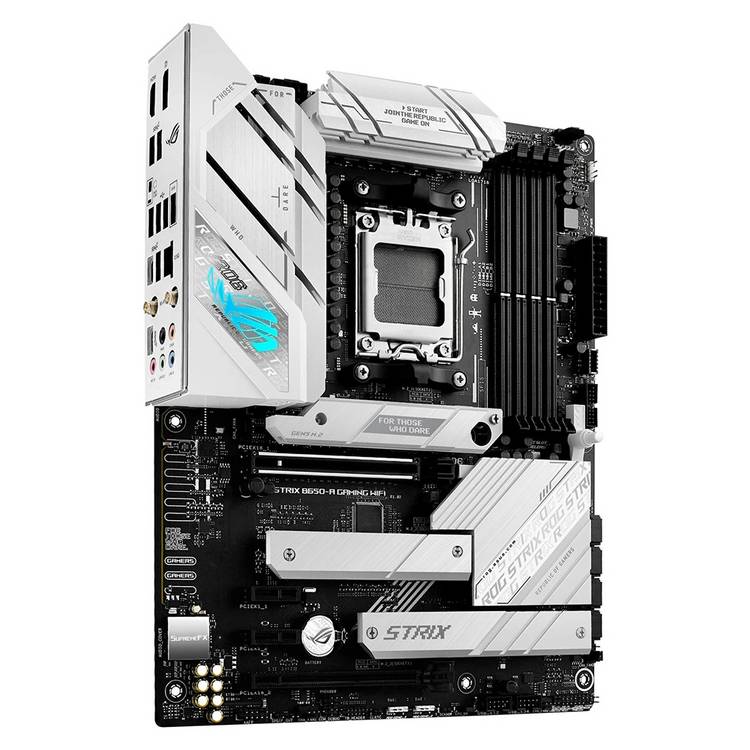

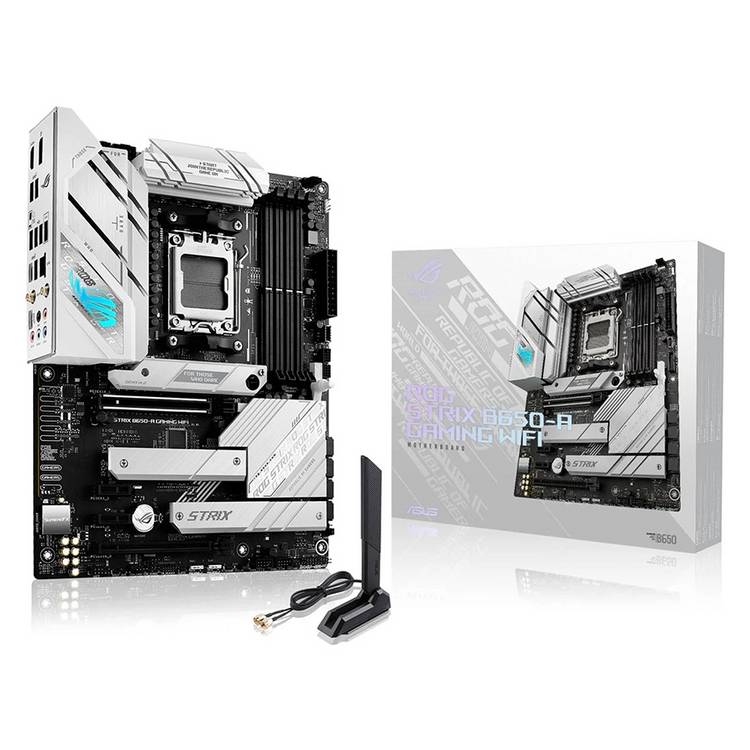

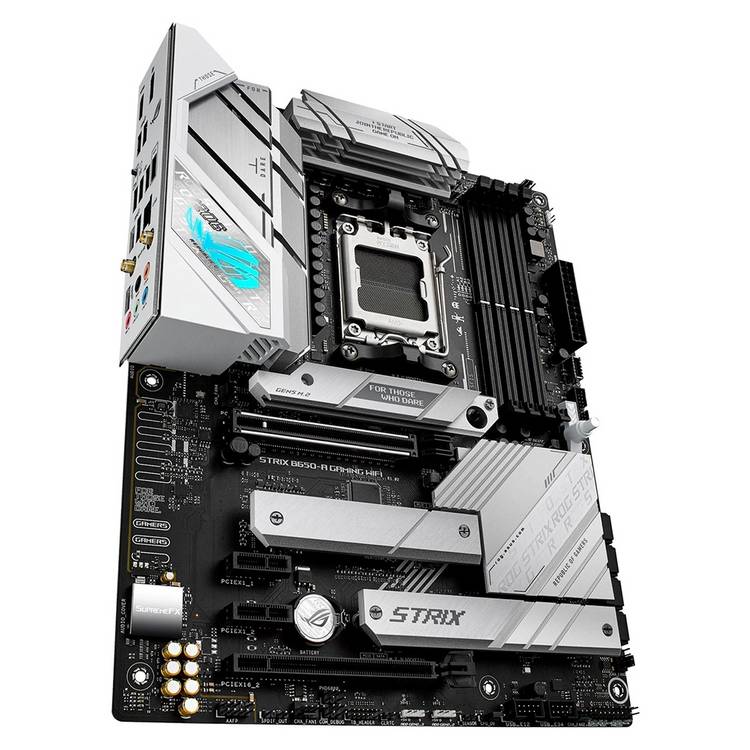

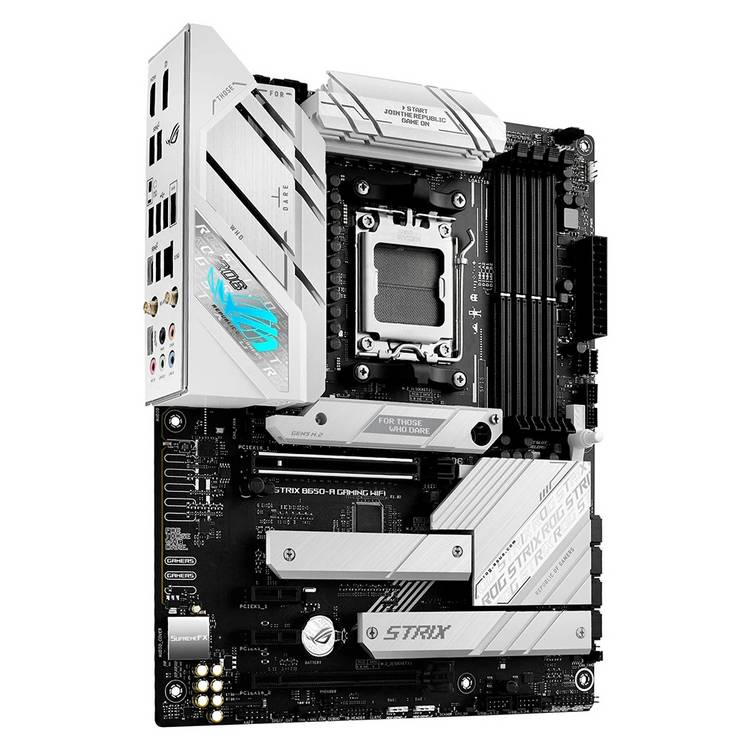

The ASUS ROG Strix B650-A Gaming Wi-Fi supports AMD Ryzen 7000 Series processors with a 12 plus 2 power solution delivering 60A per stage, cooled by metal heatsinks contrasting with the black PCB. This ATX motherboard runs on the B650 chipset and handles DDR5 memory up to 8000MHz with AMD EXPO support. A PCIe 5.0 M.2 slot offers rapid storage, and Wi-Fi 6E opens the less congested 6GHz band. Four DIMM slots support up to 128GB DDR5 RAM, providing ample capacity for gaming, streaming or content creation.
You'll find 3 M.2 slots and 4 SATA 6Gb per second ports for flexible storage, plus PCIe 4.0 x16 slots for graphics and expansion cards. The PCIe Slot Q-Release button makes GPU removal easy with a press, and 6 fan headers (CPU, CPU OPT, AIO pump, and 4 chassis fans) let you fine-tune cooling. VRM and M.2 heatsinks manage heat, and the rear panel offers 6 USB 2.0 ports, 2 USB Type-C ports, HDMI and DisplayPort for integrated graphics, Ethernet and audio. Measuring 244mm by 305mm and weighing 2,130g, it has a 256Mb Flash ROM running UEFI AMI BIOS and a 3-year manufacturer's guarantee.
Memory: 4 x DIMM, Max. 128GB, DDR5. Supports up to 8000MHz.
Expansion slots: AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot. AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0/3.0 x1 slots.
Storage slots: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports.
Cooling: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers. Pump fan, fan cooling, thermal sensor, heatsink, VRM heatsinks, M.2 heatsinks.
Connectivity: 6 USB 2.0 ports, 2 USB Type-C ports, 1 Ethernet port, 1 HDMI port, 1 DisplayPort, headphones jack.
General information: ATX form factor. AMD B650. LGA 1700 processor socket. Compatible with AMD processor. Supports Microsoft Windows 10 or later. Power button. Reset button. BIOS: 256 Mb Flash ROM, UEFI AMI BIOS. DDR5 memory channel. EAN: 4711081917762.
